Our flagship drone detection sensor

Send Inquiry

Capabilities

Connectivity

Remote-ID detection over Wi-Fi and Bluetooth

Range

Urban - up to 10 km
Rural - up to 25 km
Ideal - up to 50 km

Adaptability

Adaptive channel prioritization maximizes Remote-ID detection probability.

Coverage

360-degree awareness for broad low-altitude domains.

Detects Universally Accepted
Transponder Package

ASD-STAN EN 4709-002

ASTN F3411-19

  • Adopted
  • Ongoing implementation
  • Not adopted

RN4 detects drones from manifacturers such as but not limited to:

DJIParrotAutel RoboticsWingtra

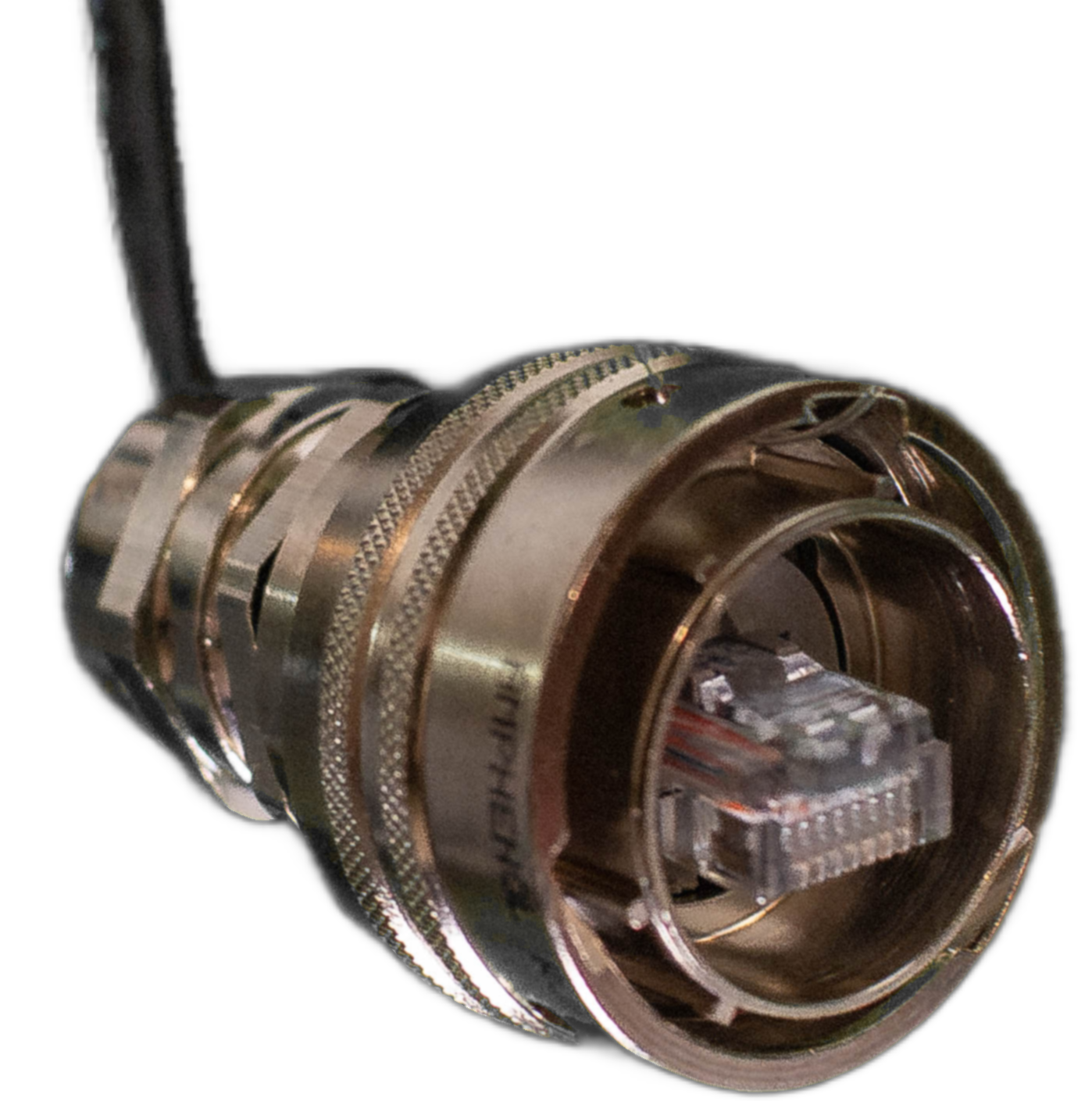

Single Cable setup

One PoE cable carries power and data to the sensor. Fewer runs, fewer penetrations, fewer points of failure, in a connector rated to military vibration and weather standards.

  • MIL-DTL-26482 SHELL
  • Rugged RJ45

Designed to withstand the Nordics

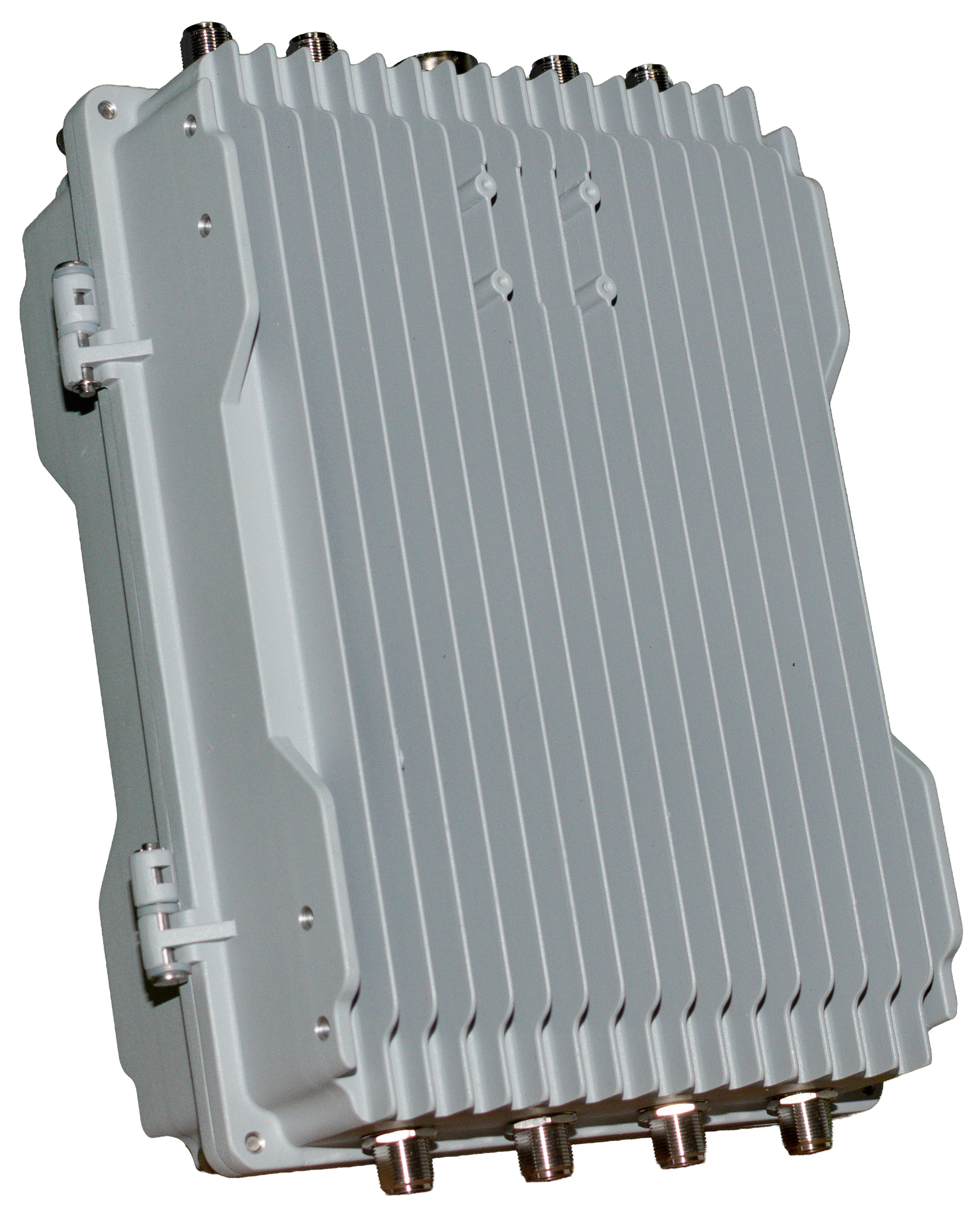

Our sensor is designed for fixed outdoor deployment where the system's resiliance, corrosion resistance and serviceability matter.

  • Aluminum alloy enclosure
  • ISO 3506-1 (A4-80)
  • -IP67 (IEC 60529)
  • -40 °C to +40 °C

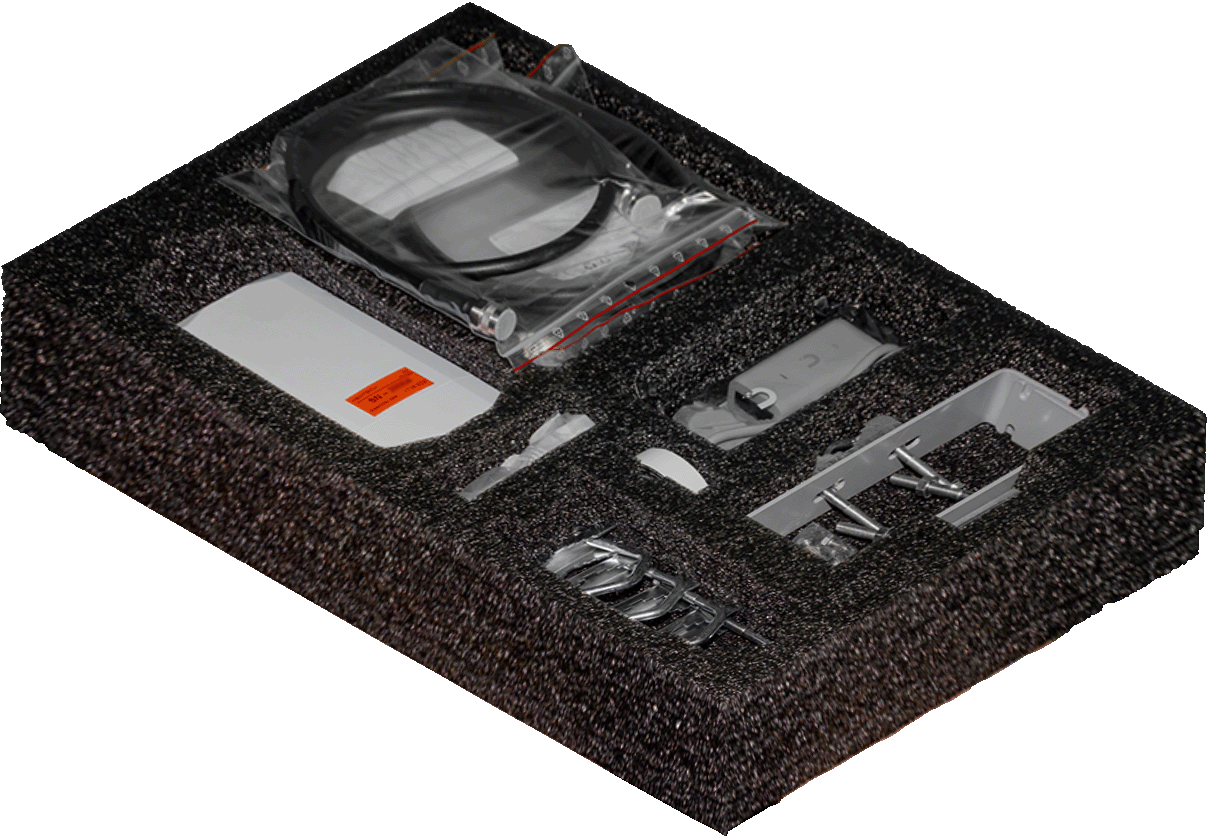

Everything you need
in one box

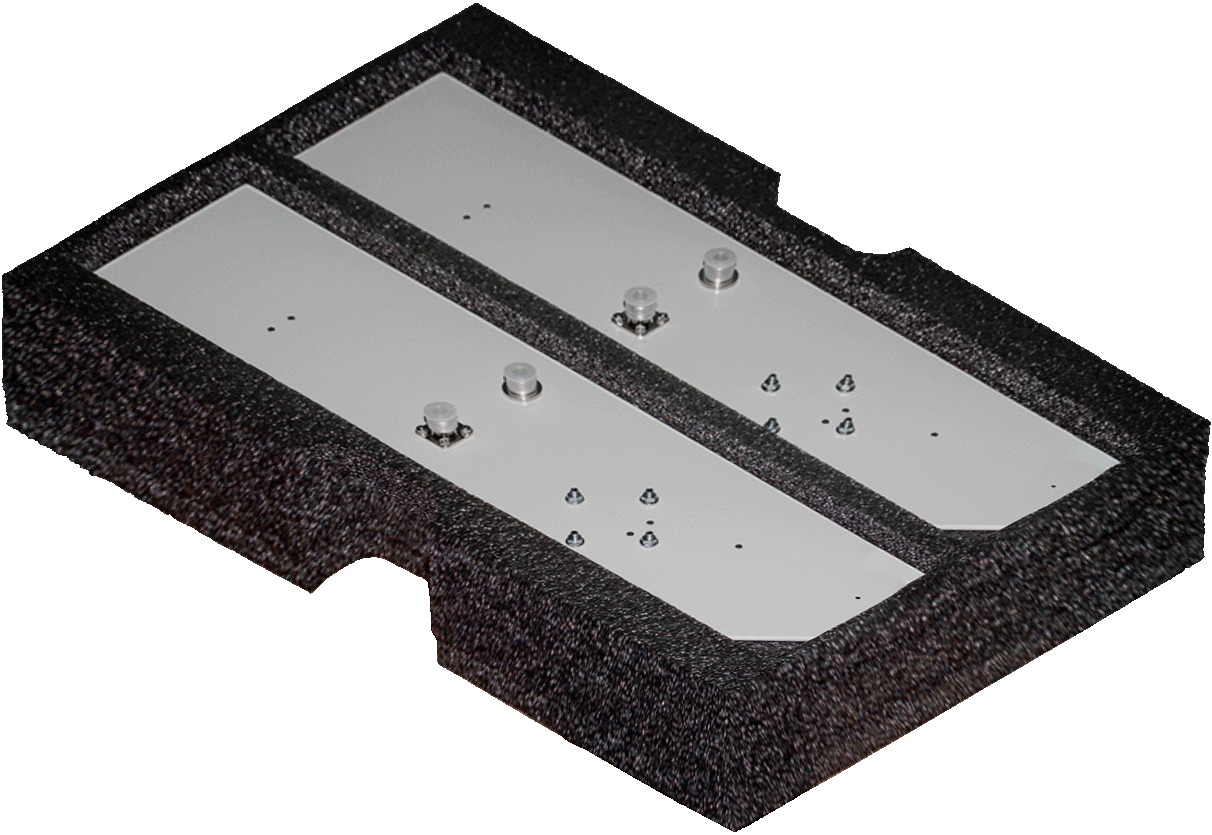

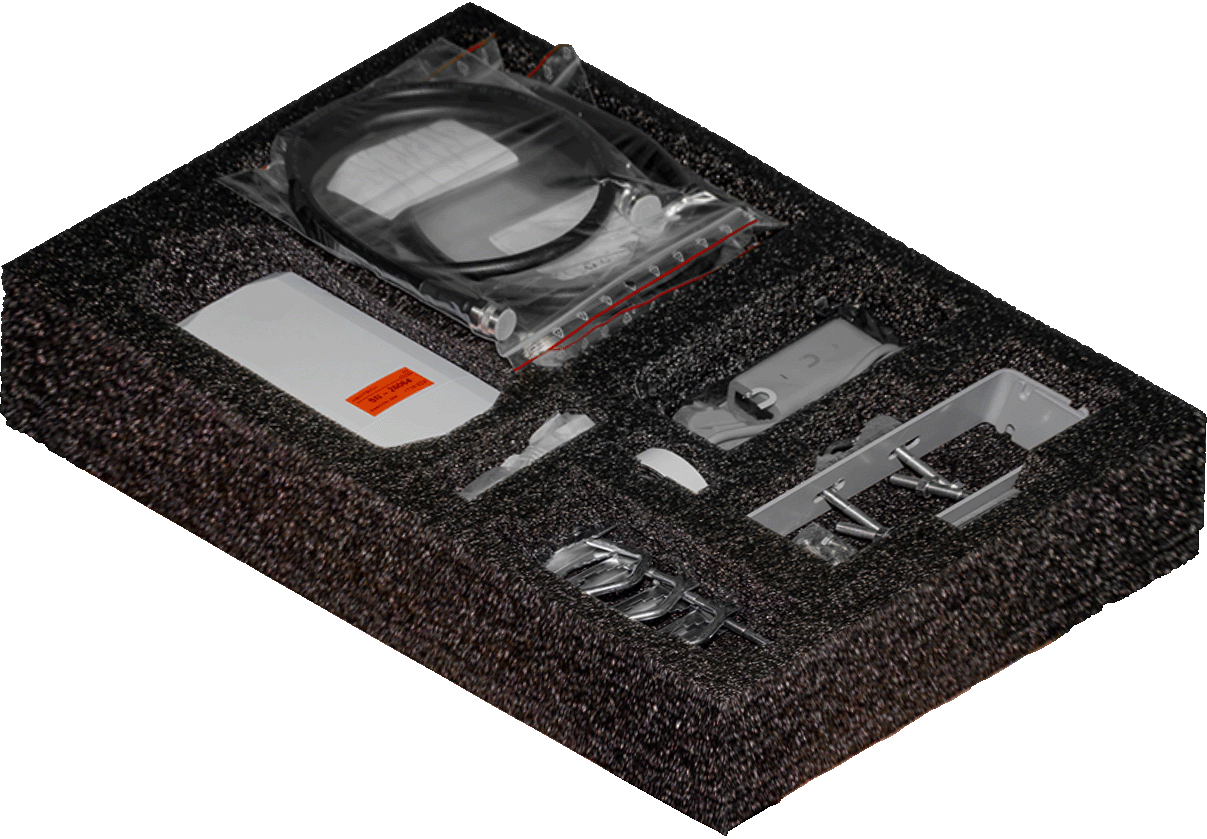

Mounting hardware

Antennas

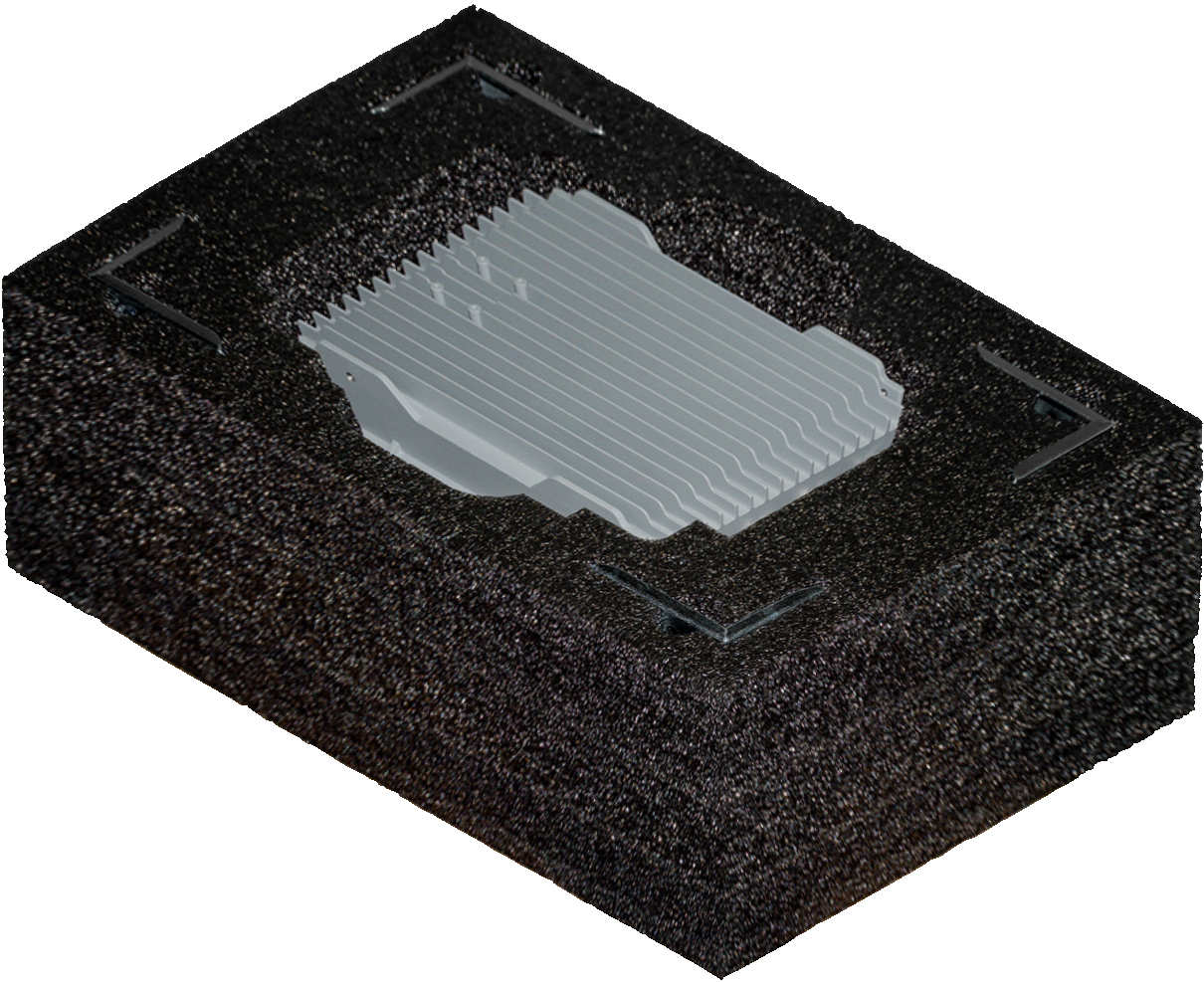

Sensor

Specifications

Dimensions
250 x 350 x 140 mm
Weight
6.5 kg (sensor only)
13.5 kg (full assembly)
Supported Remote-ID Protocols & Standards
Bluetooth 4/5
Wi-Fi beacon

ASD-STAN EN 4709-002
ASTM F3411-19
Operating Temperature
-40 C to +40 C
Ingress Protection
IP67 (IEC 60529)
Wind Load
56 m/s (EN 1991-1-4)
Power Input
Power over Ethernet
(IEEE 802.3af & 802.3at)

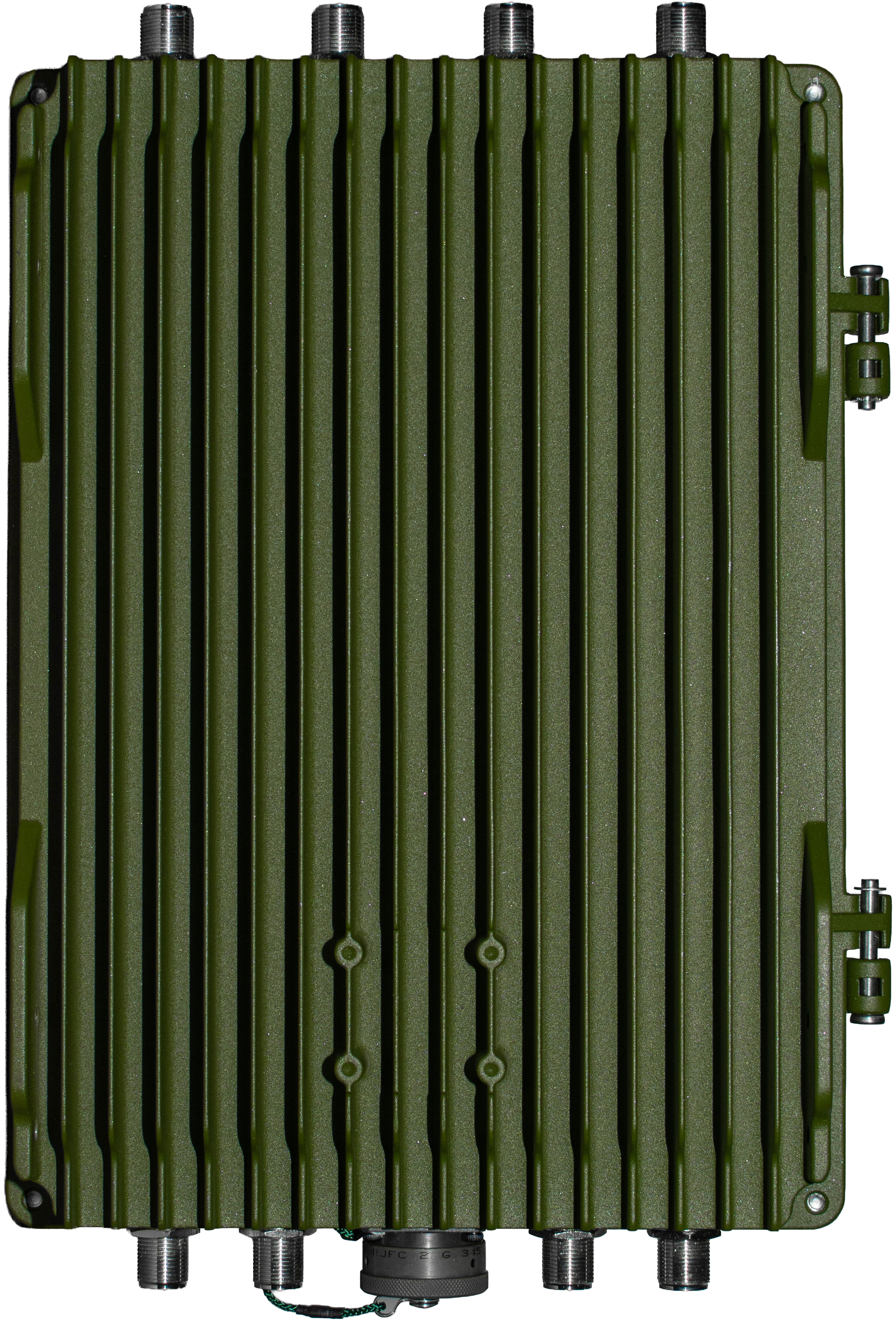

RN4 in RAL 6031

C2 Platform Agnostic

The sensor can be integrated into any C2 platform upon request. The best option is to use the sensor with our industry-leading C2 platform, Droneradar.

Read about Droneradar

Pre-qualify to purchase RN4

RN4 is supplied to verified end users only. Write to us from your official organisation e-mail address and we will arrange a technical briefing.

Send us an inquiry
